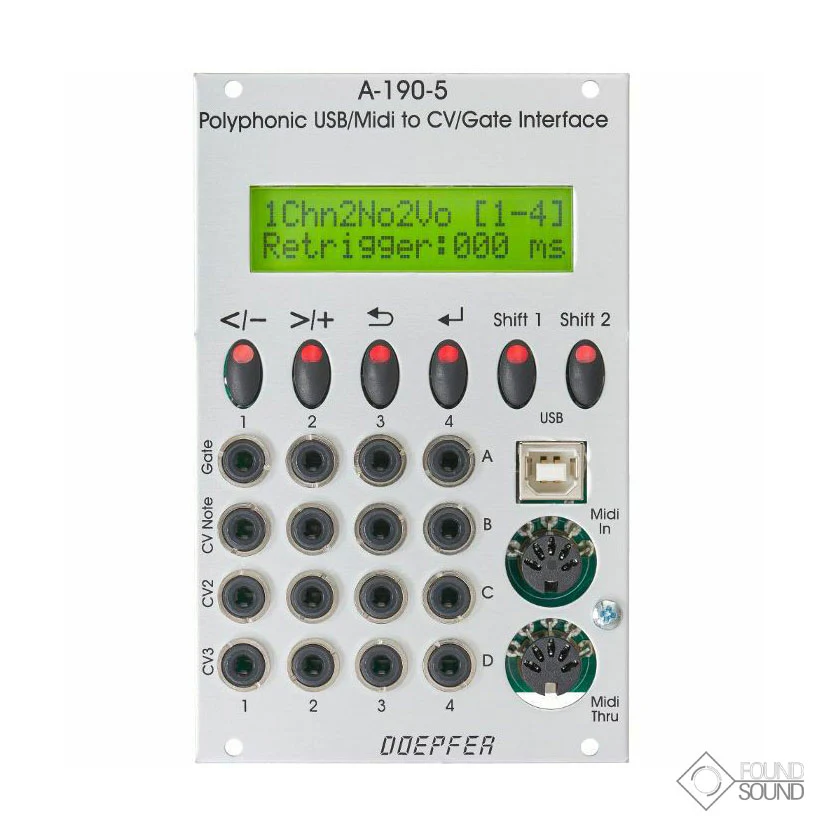

Doepfer A-190-5 USB MIDI-to-CV / Gate Interface

The A-190-5 is a four-channel MIDI-CV interface for playing polyphonic patches. For each voice it generates a pitch control (1V/oct), two aux CVs and a Gate signal. The two additional control voltages can be controlled via Midi Velocity, Volume, Modulation, Pitch Bend, After Touch, and more. Features four operating modes:

• 4-Voice monophonic (ie to control 4 monophonic voices on 4 consecutive midi channels)
• 4-Voice polyphonic (ie for controlling 4 monophonic voices on a midi channel) with different assignment algorithms (eg rotating / non-rotating)
• 2 Voices polyphonic (ie to control 2 monophonic voices on a midi channel)
• Unison

Video: https://youtu.be/3NTQuN-Gwhw?t=153

Product Specs

• Item Number: 10246
• Make: Doepfer
• Model: A-190-5 USB MIDI-to-CV / Gate Interface
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: MIDI Quad
• Made In: Germany
• MPN: A-190-5
• EAN: 4250711119058
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 16 HP 55 mm deep
• Power*: 120 mA +12V 40 mA -12V ? mA 5V

* User contributed details
