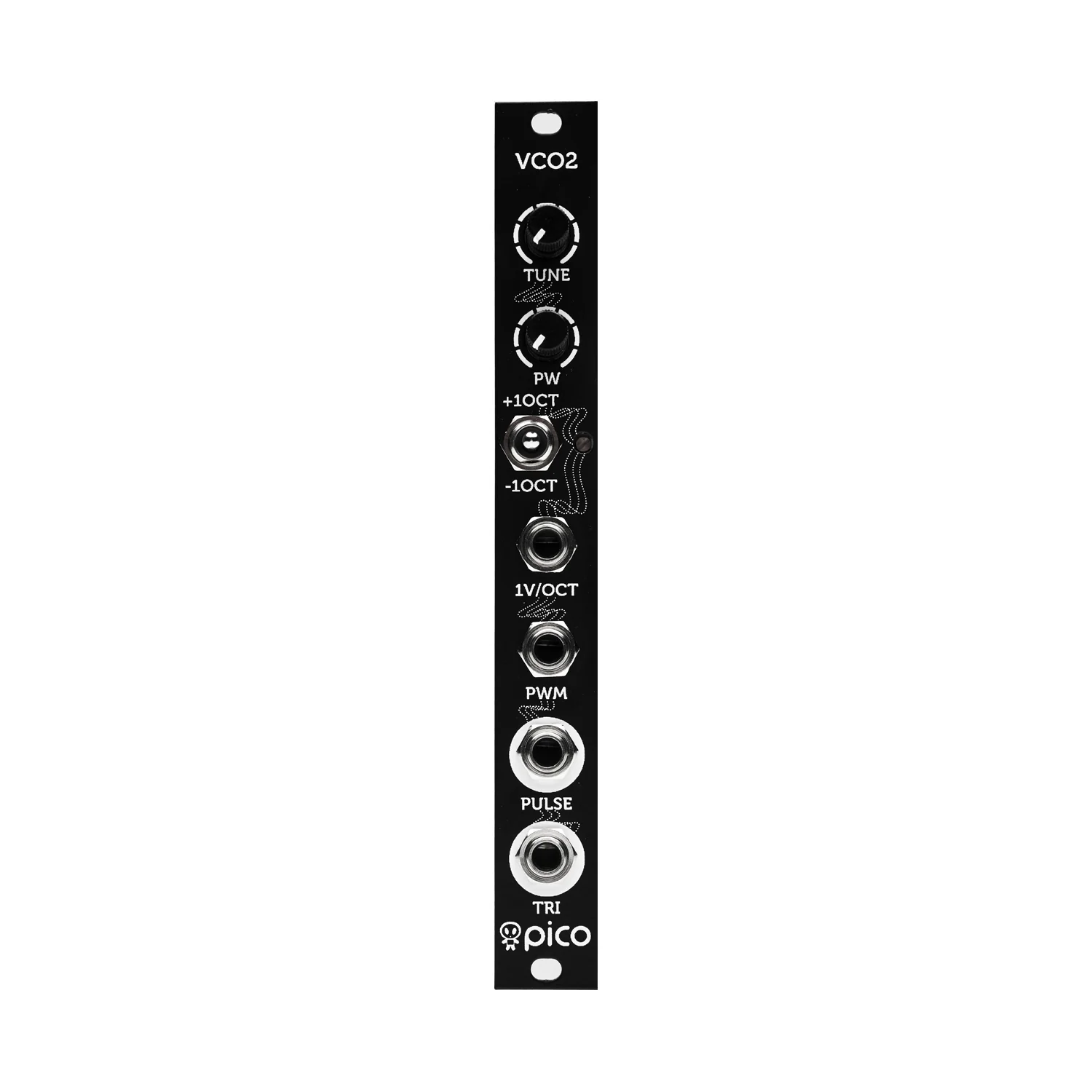

Erica Synths Pico VCO2

The Pico VCO2 is a fully analogue VCO with impressive tracking over 8 octaves - in just 3hp! Just think, you could pair two together, add some PWM and have that lush, analogue bass sound you've been dreaming about.

Features

• Manual TUNE and PWM controls
• +-1 octave switch
• 1V/oct input with good tracking across 8 octaves
• PWM CV input
• Pulse and triangle waveform outputs
• Input protection against overvoltage
• Protection against reverse PSU connection

Technical specifications:

• Output signal amplitude -5V - +5
• PWM CV input (full span) -5V - +5V
• Power consumption +21mA, -19mA
• Module width 3HP
• Module depth 35mm

Video: https://youtu.be/VOav4TYS_uM

Product Specs

• Item Number: 14998
• Make: Erica Synths
• Model: Pico VCO2
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Oscillator
• Made In: Latvia
• MPN: ES-PicoVCO2
• EAN: 4751030825366
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 3 HP 35 mm deep
• Power: 21 mA +12V 19 mA -12V 0 mA 5V
