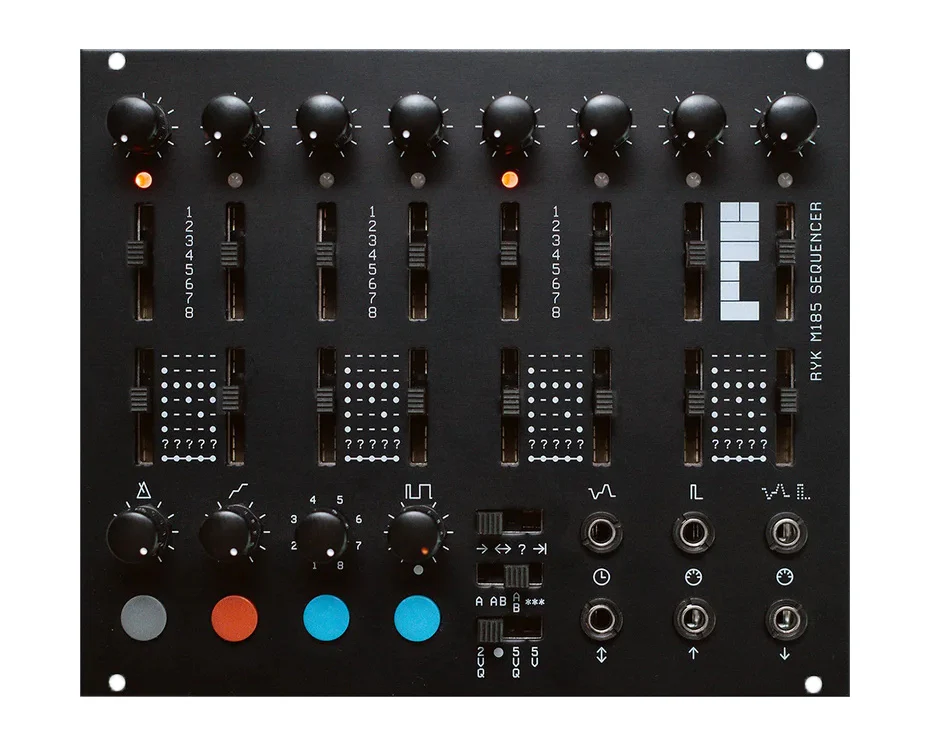

RYK Modular M185 Sequencer for Eurorack

The M185 is the most intuitive and playable Eurorack sequencer. It appeals as a hands-on performance orientated module for easy creation of complex melodic sequences. It is the original multi-step-per-stage sequencer that inspired the Metropolis and Metropolix modules.

• Features an expansion header for chaining two M185s for 16 stage sequences
• Loads of quantisation scales
• Live X0X style Gate Pattern programming

OVERVIEW

• 8 unique gate modes for creative rhythmic possibilities
• A/B split mode for two separate sequences, like having two sequencers in one box
• 2 channels of CV/GATE and MIDI I/O
• 15 Quantise scales [ NEW for 2021 ] OR pure analogue microtonal CV output

INPUTS & OUTPUTS

• 2 channels of CV and Gate outputs
• Expansion header to connect two M185s for 16 stage sequences [ NEW for 2021 ]
• Reset input [ shared with MIDI input ]
• Sync output [ shared with CH2 gate ]
• Bidirectional Clock I/O
• MIDI input for MIDI clock in, MIDI note transpose
• MIDI output for MIDI clock out, MIDI note output

STAGE DETAILS

• 8 stages, each with individual 1-8 step repeats per stage
• 8 gate modes per stage [ Off, Once, All, 1/2, 1/3, 1/4, Probability or Programmable, and Long ]
• Programmable gate patterns for 'on the fly' X0X style programming of gate triggers

Includes CH2 CV/GATE cable.

Video: https://youtu.be/QuZjsGDVuZQ

Product Specs

• Item Number: 22461
• Make: RYK Modular
• Model: M185
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Sequencer MIDI Clock Generator CV Modulation Function Generator Random
• Made In: United Kingdom
• MPN: RYK-M185
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 30 HP 25 mm deep
• Power*: 110 mA +12V 10 mA -12V 0 mA 5V

* User contributed details
