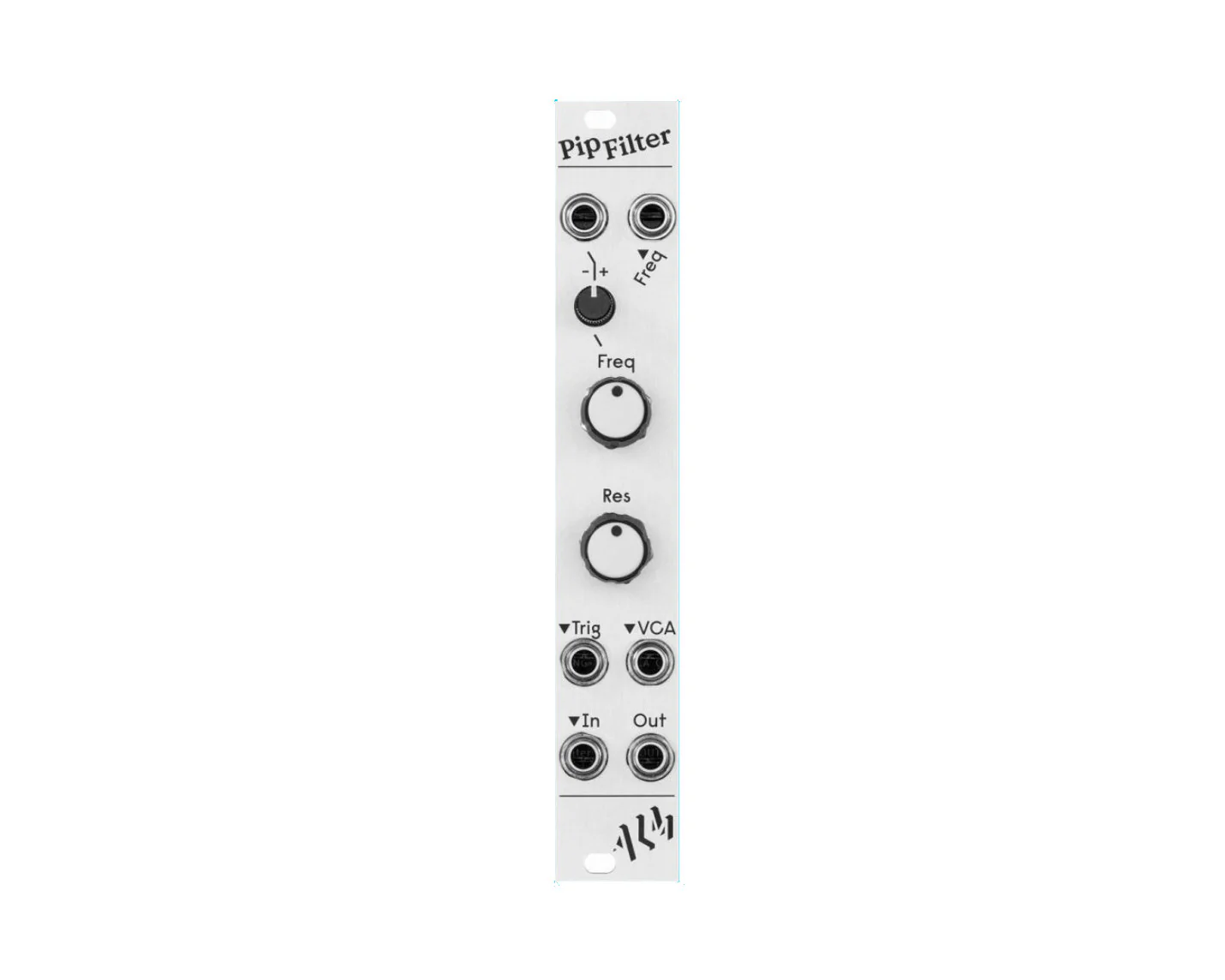

ALM Busy Circuits Pip Filter Compact Low Pass Filter and VCA

The ALM ’Pip Filter’ is a compact 4HP voltage controlled 2 pole low-pass filter with resonance, a ’pingable’ trigger input and built in VCA.
Filter cutoff is controlled via both knob control and dual CV inputs with a built in attenuverter. Resonance is manually controlled and will reach into self oscillation with rough V/Oct tracking. A trigger input allows the filter to be pinged for percussive plucked type sounds. Finally, a built in VCA (normalled open) allows for additional independent amplitude control of the filtered signal.

Features

• Compact filter and VCA in 4HP.
• Dual pole 12dB/Oct Low pass filter with resonance.
• Two frequency CV inputs, one with attenuversion and other with rough V/Oct tracking.
• Manual resonance control going into self oscillation.
• Trigger input for ’pinging’ filter.
• Normalled VCA input for optional amplitude control.
• Skiff friendly with reverse power protection.

Technical Specifications

• Size: 4HP
• Power: +12V 25mA / -12V 25mA
• Depth: 32mm (approx)

Video: https://youtu.be/FdZLnFqAEQI

Product Specs

• Item Number: 37886
• Make: ALM Busy Circuits
• Model: Pip Filter
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter VCA
• Made In: United Kingdom
• MPN: ALM039
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 4 HP 32 mm deep
• Power*: 25 mA +12V 25 mA -12V 0 mA 5V

* User contributed details
