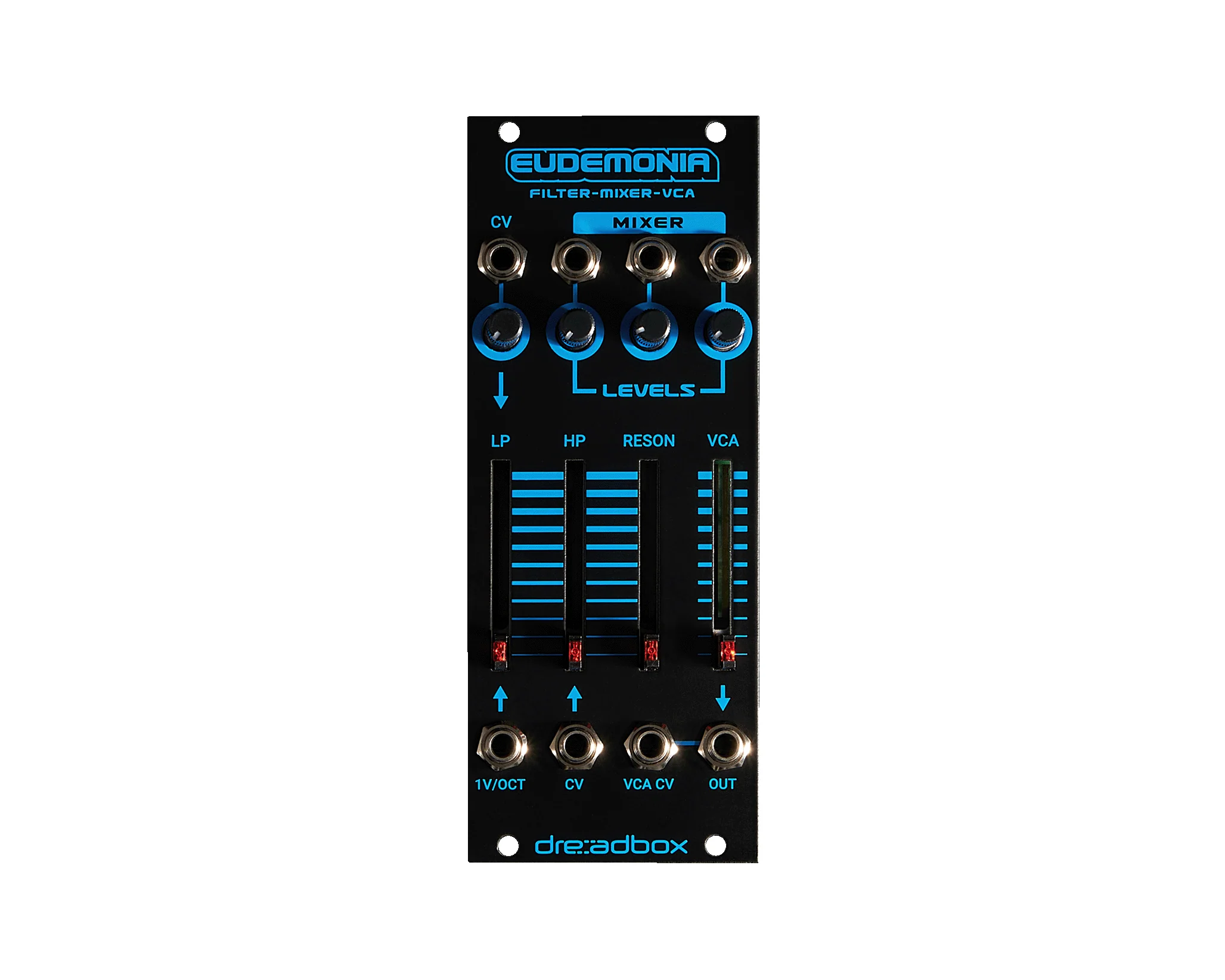

Dreadbox Eudemonia - Black

The Dreadbox Eudemonia (10 HP) is a highly flexible filter, mixer, and VCA module in Eurorack format, capable of processing audio signals for a wide variety of tones, textures, and rhythms. The module features three inputs, each with their own level control, which are capable of overdriving the filter for larger-than-life saturation effects. The signal is passed into the dual LP and HP filter, which is configured in series.

The 24 dB low-pass filter features resonance and is capable of self oscillation. The 1V/Oct CV input allows the filter to generate a Sine wave and may be used as an oscillator. The 18 dB high-pass filter is non-resonant and when used with the low-pass filter, operates as a flexible band-pass filter. Both filters can be controlled from an external envelope generator via the CV input, as well as the dedicated VCA input, which adds additional voltage to the VCA's static slider setting. The 10 HP module has a depth of 1.4" and ships with a power ribbon cable.

Features

• 3-to-1 Mixer for blending signals
• Dual Filters in Series: 24dB resonant low-pass & 18dB non-resonant high-pass
• Exponential VCA with peak indicator
• LED Indicators for visualising CV sum
• Compact & Power Efficient: 10HP, 61mA (+12V) / 69mA (-12V)

Video: https://youtu.be/1imzlwKGTKY

Product Specs

• Item Number: 38035
• Make: Dreadbox
• Model: Eudemonia BL
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Filter Mixer VCA
• Made In: Greece
• MPN: DB-EudemoniaBL
• Modular Grid: Eurorack ⓘ ＋
• Dimensions*: 10 HP 35 mm deep
• Power*: 61 mA +12V 69 mA -12V 0 mA 5V

* User contributed details
